Categories
Awesome Hardware Projects

AI reverse-engineered my groovebox

My Sonicware LoFi-12 XT is a wonderful sampling groovebox with one annoying property: the firmware is a black box. Updates ship as a mystery .bin on an SD card, and nobody outside Sonicware knows what’s inside it.

Since I’m a curious person, I let an AI agent dig into it: unpack the binary, disassemble the code, analyze the bootloader. We managed to crack the checksum function, unlocking custom firmware images.

And it comes as no surprise that the AI did most of the reverse engineering, while I provided the hands driving the screwdriver.

The setup

The Lofi-12 XT runs on a Texas Instruments TMS320C6748 (an ARM9 plus a C674x DSP) with DDR2 RAM and two SPI flash chips hiding under stickers on the core module. My job, the human job: open the unit, photograph everything, peel the stickers (both chips are Macronix MX25L12833F, 16 MB each), and dump them with a ten-dollar CH341a USB programmer.

That part was genuinely fiddly. The infamous black CH341a board drives its signal lines at 5 V even in the “3.3 V” jumper position — enough to damage 3.3 V flash — so there was multimeter work and a small voltage mod before a single byte got read. Every chip got dumped twice and compared, just to be sure.

What the AI did with the dumps

Given the raw flash contents, the agent:

  • Mapped the boot chain. The first flash chip starts with a TI AIS boot image: PLL/DDR init, ten code sections loaded into RAM, then a jump to the DSP entry point. The updater itself lives in there, which means a bad SD image can’t brick recovery — the single most important safety finding.
  • Parsed the update format. The SD .bin is a small container (cmtd/mmtd/sect) holding a DDR memory snapshot for the DSP, fully mapped section by section.
  • Found the checksum checker in DSP disassembly — a bitwise CRC-32 routine called in 4 KiB chunks from the update loop — and then did the part I’m happy I didn’t have to do manually: instead of guessing the algorithm, it set up the CRC math as 32 linear equations over GF(2) and solved for the unknown constant using my three stock firmware versions as equations. All three independently produced the same value: 0xC27C6282 — which also appears literally in the bootloader code. Checksum: CRC32 of the image with bytes 8–11 replaced by that seed. Reproduces all three stock checksums exactly.

The repo

Everything is now a clean, shareable research repo (lofi-12xt-firmware on Gitea): hardware docs with board photos, bootloader and update-flow writeups, a per-version firmware deep dive, the full reverse-engineering playbook (including every CH341a pitfall), and a stdlib-only Python toolkit that parses, repacks, patches, and verifies images. No vendor binaries are shipped — you bring your own stock .bin, and the tools forge valid modded images from it. The Hello-World mod is already built: Threshold renamed to ThresholX, checksum self-consistent, waiting for its
first boot test.

What’s next

I could explore this more, promise to build a whole new firmware etc. But I won’t do that.

Honestly, this is quite an achievement for an afternoon with an unknown electronics device, an AI agent and the right tools. And I did this just for fun. To learn. I did it as a dare to see if I could spoof my own firmware using AI.

But building a fully custom (or at least sufficiently different) firmware this way is just not practical. Not without support from the manufacturer. Even with these amazing new capabilities. There are better ways to spend one’s time.

Categories
Projects

flow-state: Music Video Generated From Audio Alone

My older music-video-gen generators solved the “YouTube wants a video” problem by being screen-recorded: open a web page, play the track, capture the window through OBS. It works — several of my videos were made that way — but it records in real-time, risks recording artifacts and stutters.

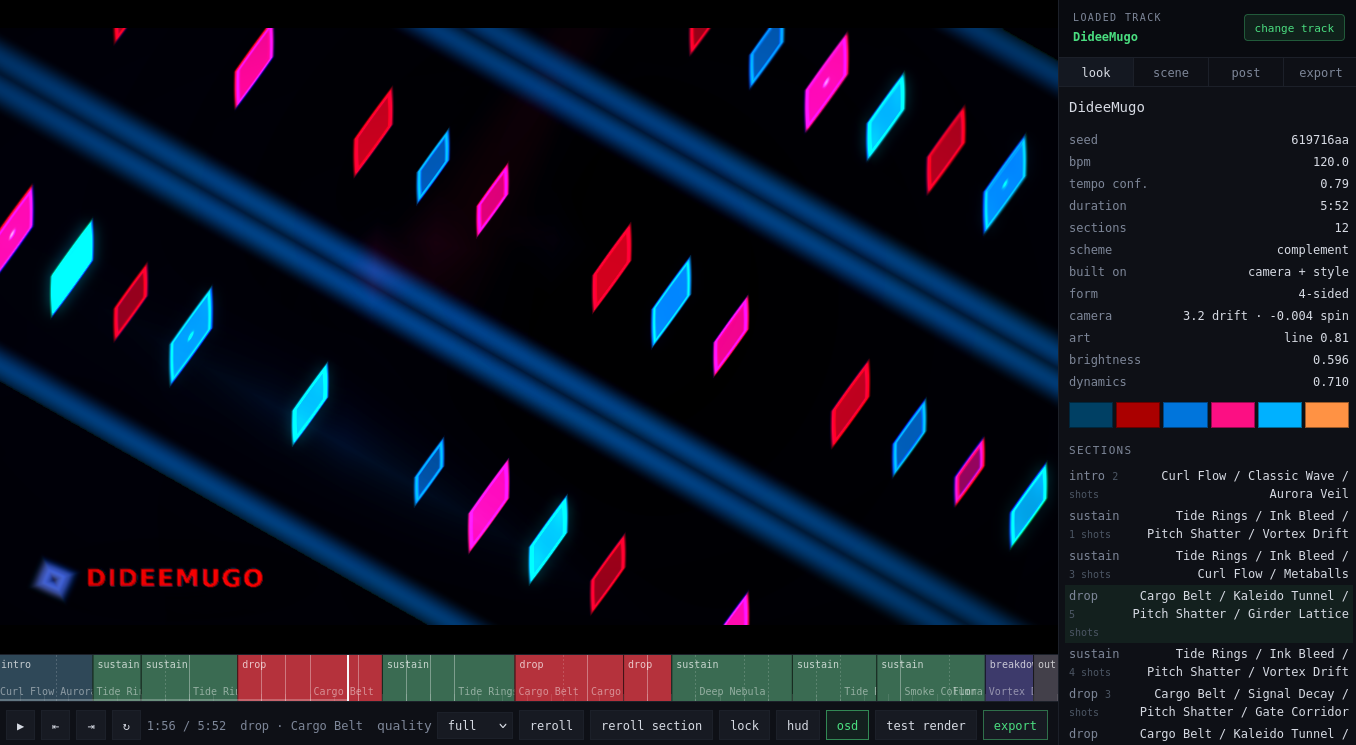

flow-state is a different other approach. Drop an audio file on the page, wait a second or two to get analyzed, and you have a full-length procedurally generated music video you can edit or just export to mp4. No screen recording needed.

Plan first. Code second

I sat down with Claude and wrote the plan: what is the goal and the vision, how this improves on the previous approaches. I let it define phases with verification gates that needed to pass before the next phase was allowed to start.

Next came a one shot implementation. The AI worked for a few hours before handing over a working solution. I say “AI” because this process capped a few different AI subscriptions, not just Claude. But it was straightforward to pick up where the other AI agent left off. We had the plan and gates to keep it on track. Once the plan was finished, the app was ready to be used.

Everything is decided before the first frame

Instead of reacting on the music playback, this time the track is fully analyzed before anything renders. This let’s us establish sections of the song (intro | build | drop | sustain | breakdown | outro) with different visualizers that can be switched and parametrized based on the music.

The main benefit is lookahead. Because the whole song is analyzed up front, a build can anticipate its drop: ramp density and move toward the drop’s values over the eight bars before it, and arrive at the transition already at full tension. A causal analyzer can’t ever do that — it only knows the drop landed after it landed.

A scene is a shader

There are 40+ visualizers available. Adding a new one costs a shader and a schema block that describes it. It can then be picked up for the appropriate part of the song and provided with unifying “song personality” parameters that keep the visuals consistent across the song.

A shader can be added via an AI skill + a script call. It is also machine-checkable — a linter cross-checks each shader’s uniforms against its params block both ways, which is what stops a library this size from rotting.

And then I watched it

This is the check that can’t be automated; it requires human touch and intuition. After all of the above I sat down with the output and asked whether it actually felt interesting for five minutes. The answer was no. I looked into translating a vague sense of “interesting” into metrics and numbers that the AI could use to improve this across the board. Finding them allowed for a second phase of changes, which genuinely made the videos interesting at last.

Before, we had scene changes tied to the metronome in fixed intervals, the palette was frozen for the whole track, 39% of the library didn’t meaningfully develop over two minutes, and 29 of the 42 scenes had never once been cast across twelve test tracks, with cross-track sameness baked into a module constant mapping section kinds to families. A lot of this was improved once we had metrics that make sure scenes are “interesting” and variable.

First song is out there

The whole reason I made this app was to have an easy way to produce music videos. It took a whole day to finish, but that is the up-front price to pay for setting up a pipeline and being able to push out many more songs later.

Enjoy!

Categories
Games Programming Projects

splinter-keep: A Text RPG with a local LLM as Dungeon Master

splinter-keep — it calls itself “The Chaos” in-game — is a terminal RPG where an LLM runs the whole game: it narrates the scene, offers you choices, resolves whatever you type back, and rolls dice behind the scenes against a genuinely simple d6-based rules system. Every turn gets appended to a running story book, so by the time a campaign ends you’re left with something that actually reads like a book rather than a chat log.

The whole game loop lives in one terminal app — there’s no separate “DM” service and “player” client, just a TUI that calls the LLM directly for every scene and every outcome. The interesting constraint was making that work with a local model running on my own GPU instead of a hosted API. I went through a lot of different local models while building this, and every single one had its own quirks and failure modes: refusing to follow the output format, inventing rules, forgetting inventory, that sort of thing.

It only became reliably playable once I added real guardrails: a strict structured output format the LLM has to fill in every turn — choices, log line, state changes, as a JSON block — and a second, separate LLM call whose only job is to check whether the player’s action is even valid given the current character and world state, before the main narrative call runs at all. That second-opinion step mattered more than any single prompt tweak.

Even with all that, I’ll be honest: the actual writing quality of a small local model is nowhere near what you get from pointing the same code at a larger hosted model instead — the game supports both, swappable in config, and the difference in prose is obvious. But getting a local model to behave at all, reliably, turn after turn, was most of the fun here. Still a great experience playing around with LLMs either way.

Full architecture notes, the rules system, and the code for both the guardrails and the LLM strategies are in the splinter-keep repository.

Categories
Music Programming Projects

music-video-gen: I Let an AI Build My Music Visuals

Finishing a track isn’t the end of the job — most places to share music, YouTube included, want a video, not a bare audio file. music-video-gen is a small library of “generators”: self-contained pages with reactive visuals that get screen-recorded alongside a track to produce that video, one scene assembled per song as needed.

Five generators so far. party-stage is the most developed: a full virtual venue with a DJ, a dancing crowd, lasers, light bars, and a projection screen that runs one of several audio-reactive shader visualizers — Synthwave Run, Drugged Out Flow, Nebula, Floating Shapes — picked at runtime. party-cathedral swaps the modern club for a torch-lit medieval hall, with illustrated performers instead of a laser show. tv-player takes the opposite mood entirely, a quiet in-room scene built around an old TV and VCR, with small environmental touches like dust, flies, and a spider added recently for texture. magic-mirror rounds out the mid-sized scenes, and sparkles, the original and simplest of the set, is still there too.

The part actually worth writing about is how it got built: essentially the whole thing was written by an AI (Gemini) rather than by hand. Instead of one big scene file the AI would have to reason about — and risk breaking — on every change, each stage element (dancers, DJ, lasers, torches, camera, curtain) is its own small class behind a two-method interface, registered with a single manager. Visualizers work the same way, behind their own shader interface. That structure was chosen specifically so an AI could keep extending the project safely, one self-contained file at a time, without needing to hold the whole scene graph in its head.

Getting the music-reactive parts to actually feel right was the fiddliest bit. Beat detection went through several rewrites before settling on combining multiple detection approaches at once, plus a dedicated “blackout” effect to sell song drops. The newest work adds a visualizer picker and two new shader visualizers, and swaps pre-rendered video textures for a plain image slideshow.

These scenes have ended up in real music videos on my channel: party-cathedral’s torch-lit hall backs Flofleep, party-stage’s laser-lit DJ booth scores Ropot Gili, and tv-player’s dusty VCR room sets the mood for Mystery Tape. Full source for every generator, including the scene and shader code, is in the music-video-gen repository.

Categories
Hardware Music Projects

PicoWaveTracker: A MIDI Step Sequencer That Writes the Notes For You

PicoWaveTracker is a MIDI step sequencer built around a Raspberry Pi Pico, an OLED screen, a rotary encoder, and an 8×8 NeoPixel matrix standing in for the usual grid of step buttons. Turn the encoder to move between steps, click to edit a note, hold to start or stop playback — the kind of tracker interface I’ve always liked, minus the wall of physical buttons.

What makes it more than “yet another step sequencer” is that half the tracks don’t have to be programmed by hand. Alongside the regular manual track, there’s a set of generative strategies you can hand a track over to instead — Euclidean rhythms, L-systems, cellular automata, Markov chains, arpeggios, call-and-response, drones, even a “lucky” random strategy. Each one turns a track into a little algorithm instead of a fixed pattern, and you can run several tracks at once with different strategies and step counts, which gets you polyrhythms almost for free.

A lot of the later work went into making the generated parts actually sound musical instead of just correct: scale and root-note awareness so the algorithms stay in key, a mutation setting with adjustable intensity so patterns drift instead of jumping randomly, and chord-note support so “harmony” means something beyond a single melodic line. There’s also a dedicated drone strategy for when you just want a track to hang in the background.

The hardware side had its own fights: the NeoPixel matrix draws more current than the Pico can supply on its own, so it needs a separate 5V line, with real warnings about not doing this the lazy way and frying a USB port. I also hit a deadlock where the watchdog would restart the whole device if a MIDI lock got acquired twice in a row — the kind of bug that’s obvious in hindsight and infuriating in the moment.

To make this build extra fun, I repurposed a kids’ toy briefcase and made it a bit punk.

Full wiring diagrams, power options (including a portable LiPo setup), and the code for all the generative strategies are in the PicoWaveTracker repository.

Categories
Hardware Music Projects

NoiceSynth: A Grid-Based Modular Synth You Can Fit in a Tin

Modular synths are great fun, but they usually mean a rack, a pile of patch cables, and a wallet that’s a lot lighter than it used to be. NoiceSynth is my attempt at getting that same “patch it together yourself” feeling into something that fits in a tin box and runs on a single Raspberry Pi Pico.

Instead of a fixed synth architecture, you get a 12×12 grid. You place modules on it — oscillators, filters, envelopes, and a handful of others — and wire them together however you like. Want a patch that leans into DX7-style FM synthesis? Build it. Want a slow, drifting drone instead? Same grid, different wiring. The “instrument” is whatever you’ve patched together.

Under the hood, it’s an RP2040 doing the DSP work, streaming audio out over I2S for clean output. Controls are kept minimal on purpose: a rotary encoder for navigation, a potentiometer for volume, and a 128×64 OLED for visual feedback on whatever you’re doing to the patch. A 3.5mm TRS-A MIDI input lets it take notes from an external keyboard or sequencer, and the whole thing is designed to run off a LiPo cell and a booster board — small and portable enough to actually carry around.

A fair amount of the actual build time went into things you’d never notice from the outside: getting I2S audio streaming without glitches meant adding proper buffering, and once that was stable, I moved the synthesis math over to fixed-point to keep the Pico’s core from choking under a full patch. Patches themselves get saved to EEPROM, so nothing’s lost when you power it off.

There’s also a desktop simulator included, which turned out to be more useful than I expected — it lets you design and audition a patch at your desk before ever touching the hardware, and you can transfer patches back and forth between the two. It ships with eight demo patches plus a few built-in presets that mimic the DX7.

Full build instructions, wiring diagrams, and the source are all in the NoiceSynth repository.

Categories
Hardware Music Projects

StupidSynth: Turning a Decade-Old Raspberry Pi Into an Instant-On Synth

Every Raspberry Pi I own boots into a whole Linux distro before it does anything, which felt like overkill for the one thing I actually wanted: something that makes a sound the moment it’s powered on. StupidSynth throws out the OS entirely — it runs bare-metal on an original Raspberry Pi 1 (or Zero), boots straight into the synth code in one to two seconds, and starts playing.

Once it boots there’s nothing to configure and nothing to press. It just loops a randomly generated melody as a single-voice sawtooth wave out the 3.5mm jack, while the composite video output draws a bare red bar that pulses with the amplitude. No filesystem, no drivers beyond what the synth itself needs, no input handling at all.

The actual interesting part is everything that has to happen before “Hello, World” even makes sense on hardware like this. There’s no libc, no OS, so kernel.c has to be the entire universe — audio generation, video timing, and a boot stub in assembly that hands control over from the Pi’s own firmware in the first place, all built with a bare gcc-arm-none-eabi cross-compiler and linked against a custom linker script. Getting the deploy loop fast enough to be worth iterating on mattered more here than usual, so there’s a Distrobox-based dev container and a script that finds the SD card, copies the built kernel and firmware onto it, and unmounts it — no manual dd-ing required.

This one’s deliberately small and dumb, hence the name, and it only runs on the original BCM2835-based boards (Pi 1, Zero, Zero W), not anything newer. Full source, the deploy scripts, and manual setup instructions are in the StupidSynth repository.

Categories
Hardware Projects

washing-machine-notify: Knowing When the Laundry’s Done Without Modding it

I got tired of walking to the utility room just to check if the washer or dryer had finished, so I built a little ESP32 gadget — with an AI coding assistant doing most of the actual typing — that watches both machines and pings my phone the moment a cycle starts or ends.

The trick is what it actually senses. Rather than tapping into the machines electrically or measuring vibration, it just watches light — a BH1750 sensor taped over each machine’s own “running” indicator LED. If the light’s on, the machine’s running; when it goes off, the cycle’s done. It’s about as non-invasive as monitoring gets, and it works on basically anything with a status light, not just my specific washer and dryer.

I actually started with vibration sensing instead, measuring a window of motion to decide if a machine was active, but it ended up simpler and more reliable to just watch the light. Getting the timing logic right so a brief flicker doesn’t count as a full cycle took a few passes, and it all runs non-blocking off millis() so the WiFi connection and the display stay responsive.

Notifications go out over a self-hosted ntfy.sh topic rather than a proprietary app or cloud service, and there’s a small OLED on the device itself for an at-a-glance status if my phone’s not around.

It’s since been retired, though — I replaced the whole setup with an IKEA smart plug and Home Assistant, which tracks power draw instead of light and needed zero custom firmware. Still, wiring, parts list, and the full sketch are in the washing-machine-notify repository, in case the light-sensing approach is useful for a machine that doesn’t play nicely with a smart plug.

Categories
Hardware Projects

thermoprint-homework: Turning a Receipt Printer Into an Endless Worksheet Machine

I had a cheap thermal receipt printer doing nothing, and a son who needed to practice a few skills for school. thermoprint-homework — built almost entirely with an AI coding assistant — turns the two into an endless supply of one-page worksheets: run the server, hit print, get a fresh sheet.

What started as a plain TUI printing basic math problems quickly turned into a small library of “jobs”: unit conversion, decimal division, a division-based cipher, mazes with adjustable difficulty, word search puzzles, chess puzzles pulled from randomly generated positions via a chess library, even a random joke thrown in for good measure. Each one is its own self-contained job that gets queued and printed.

The newest addition isn’t practice material at all — it reads my son’s schedule straight from a Google Calendar via its private iCal feed and prints out today’s tasks, so he’s got a physical slip telling him which chores are due and whether he’s got an activity to head out to, instead of having to ask.

It’s built on python-escpos, so anything ESC/POS-compatible should work, not just the specific printer I’m using. Full job list, config, and setup instructions are in the thermoprint-homework repository.

Categories
Uncategorized

Tribal Lyre | song on a DIY Lyre

I decided to make a DIY lyre. And then I played a song on it. And here it is!
